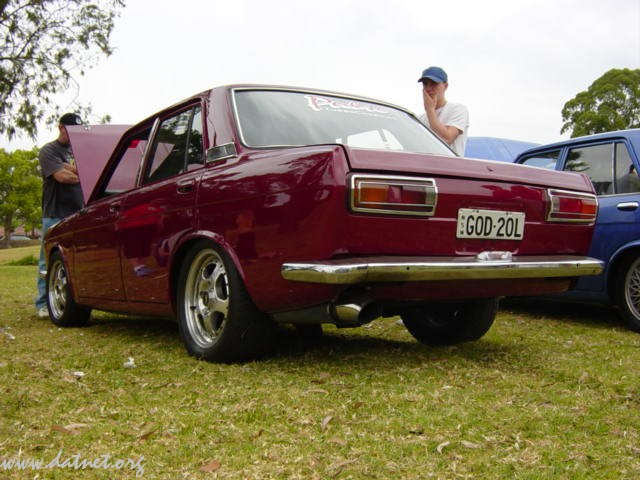

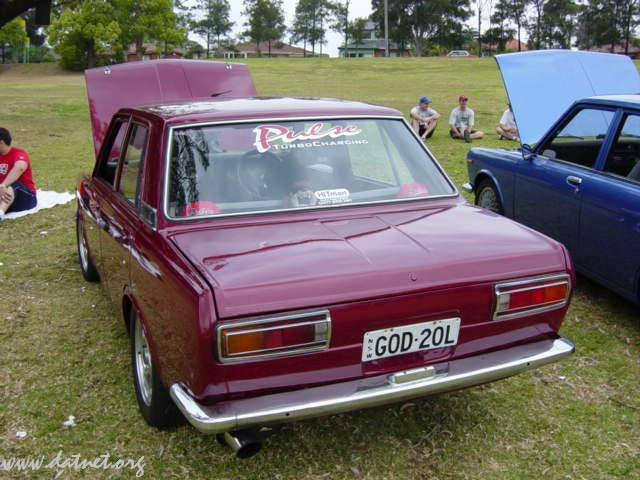

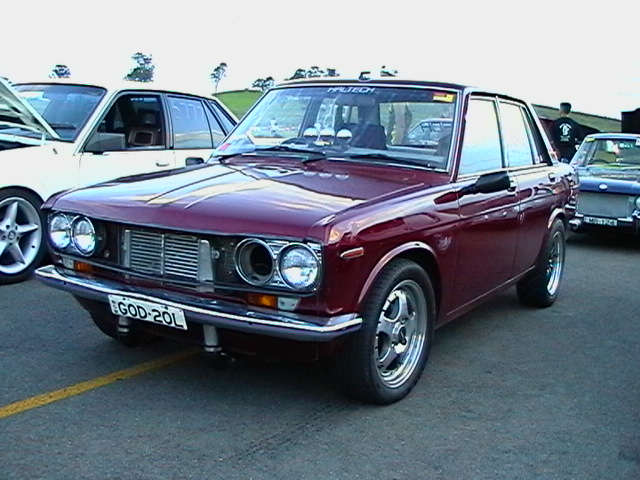

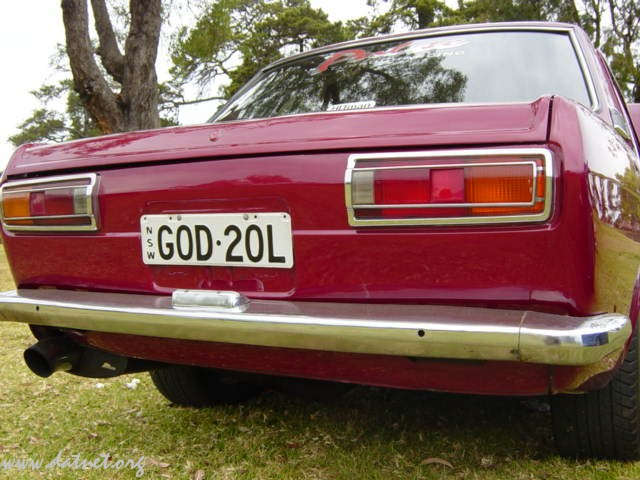

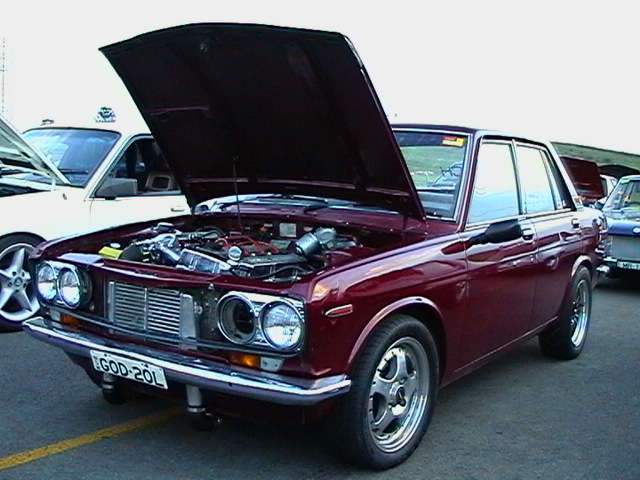

GOD20L -Anthony & Frank La Malfa's 1972 Datsun 1600

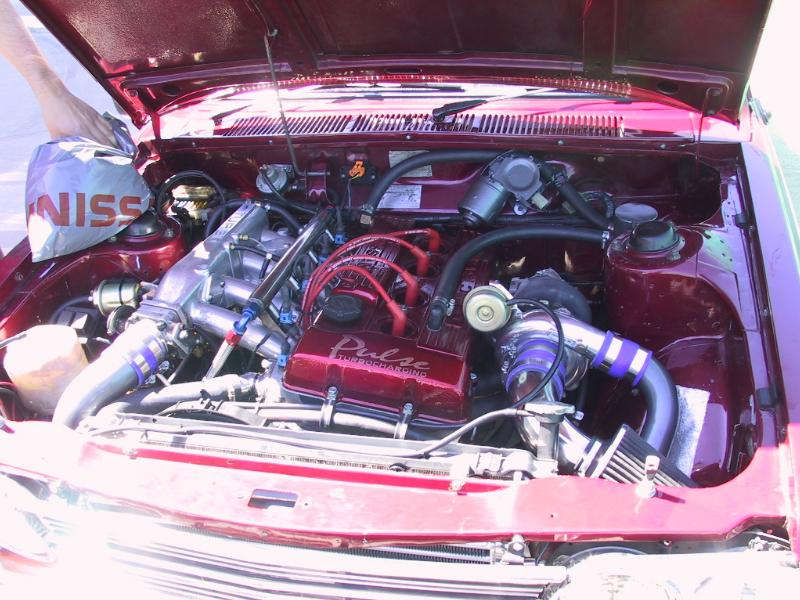

Engine Mods

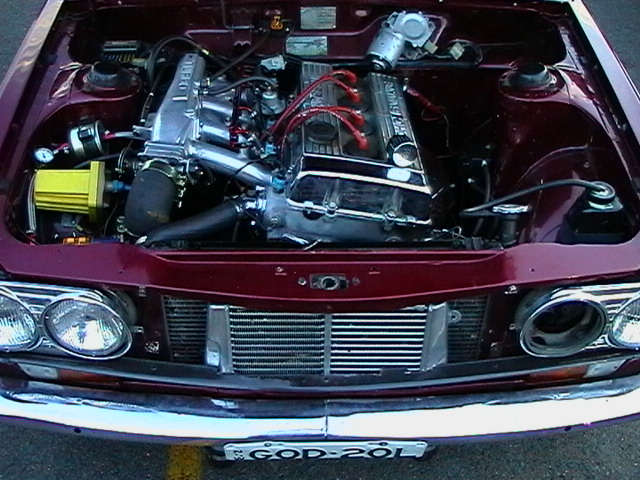

FJ20ET turbo 1990cc DOHC 16 valve four cylinder.
Motor Recently Built by Pulse Turbocharging.

Head: Custom Ported and Polished Head
High Tension Performance Valve Springs
Bigger Cams (Revability 8000RPM+)
Ceramic Coated (red) Rocker Cover

Engine Block: JE Forged Racing Pistons
Shotpeened Rods
Custom Brass O-Ringed Block
Inside of Block Specially Painted and Race Prepped
Modified Timing Cover and Oil Pump

Inlet Manifold: Modified Inlet Manifold
Bigger Throttle Body
4 x 1000cc Rochester Injectors
Malpassi Fuel Regulator
Custom Fuel Fail

Exhaust Manifold: Custom Exhaust Manifold and Dump Pipe
Heat Wrapped and Ceramic Coated

Turbo: Turbonetics T3/4 Super 60 Super V Trim Turbo
(500HP off the Shelf)
0.83 Rear Housing
60mm T04 Front

Intercooler: Custom Made Plasmaman Intercooler
Polished Finish

Fuel/Ignition and ECU: Brand New Haltech E6K
Running Sequential Injection
MSD6A Ignition Module
Braided Fuel Lines
Bosch Merc High Volume/Pressure Fuel Pump
Primer Pump and Surge Tank

Driveline: NissanTransmission:  Modified Enlargened Transmission Tunnel
Gearbox: Rare Conversion R33 Skyline Gearbox to suit FJ20, with High Performance Solid Clutch and Billet
Flywheel. Custom Tailshaft
Differential: Nissan R200 3.9LSD Diff

Brakes:  Front Datsun 240K Twin Piston Callipers on 240K Struts
Standard Rear Drums.

Exhaust: Modified Rear Cross Member to fit up to 4 inch Exhaust system if required. (Currently 3 inch Mandrel
Bent).

Suspension:  Custom Lowered Springs all round with KONI adjustable Shocks.

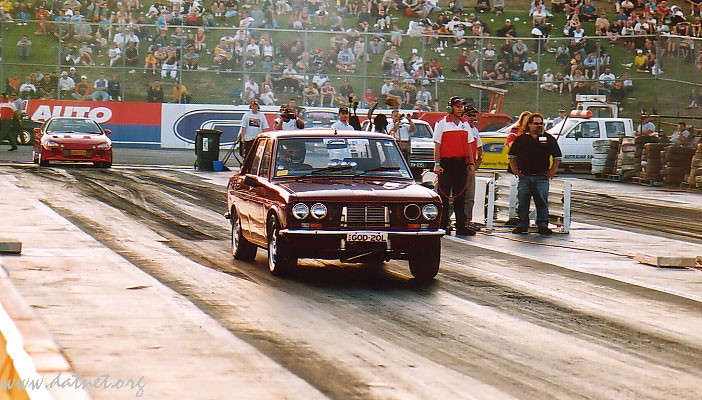

Performance: First and only Street Meet at Eastern Creek on Slicks:
11.71 @ 114 MPH on Pump Fuel

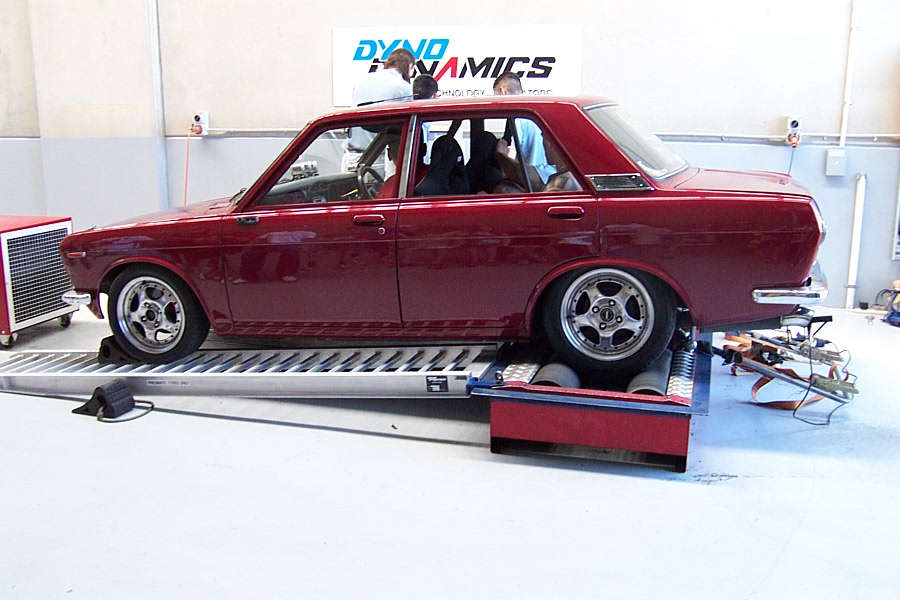

Last Dyno Tune Produced:
272KW on 18psi @ the wheels on Pump Fuel

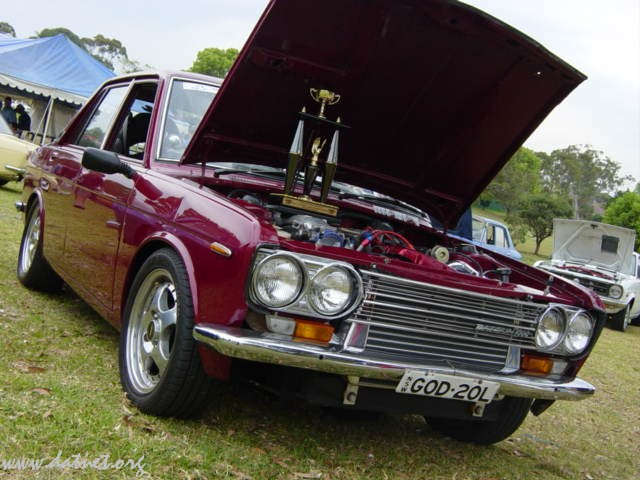

Winner of Summernats 2002 HP Heroes
4 Cylinder Turbo Class - 314.6HP as well winning the datnats dyno day.

Exterior Mods
Simmons F90. Polished 15

Interior Mods
Interior has been fully retrimmed including door panels, carpet dashboard and seats. It features WRX
Front Driver and Passenger seats.

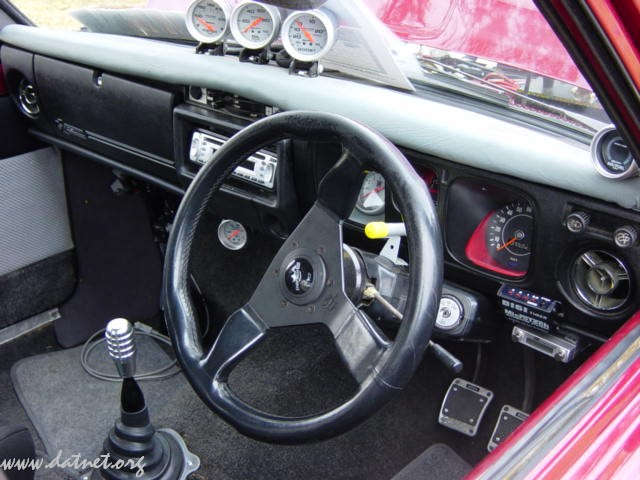

Intrumentation: 4 x Autometer Guages (Oil, Water, Boost, Ait Fuel) all in Chrome Cups, 1 x Spitfire Rev Tacho, 1
x Autometre Shift Lite, 1 x Autometer Oil Warning Light. Boost Control: Blitz Programmable Electronic Boost
Controller
