| Billet Turbochargers
use nothing less than Inconel turbines and full complement silicon nitride
ball bearings in the Billet Turbochargers signature turbochargers. They
have a unique advanced precision CNC machined and hard anodized billet
aluminum centre cartridge making the Billet Turbochargers turbo,s lighter,
spool faster and yet still more durable and reliable to extreme heat, turbine
speeds and thrust loads where the competitor brands fall over.
While some brands of turbos do use twin ball bearings they only use caged steel ball bearings and GMR turbines that spool slower and fail under heat and high shaft speeds. |
||
|
||
|
Billet
Turbochargers have so many turbocharger options that we can not possibly
list them all. If you have a special model turbocharger or turbocharger
combination that you do not see listed Billet Turbochargers will do their
best to custom build a ball bearing Billet Turbochargers turbo to suit
your application.
Billet Turbochargers turbos are not restricted to their own compressor wheels, turbines and housings. Billet Turbochargers can cross breed turbo manufactures to meet special needs. Soon to be released
exclusively to Billet Turbochargers are the Billet GTO turbine and Billet
GTP turbines. These cutting edge technology turbines made from the highest
quality materials yet further extending the high performance turbine options
for the Billet Turbochargers line up.
|
||
|
|
||
 |
||
|
High Performance FJ20ET Ball Bearing Turbochargers |
||
| The high performance FJ20ET ball bearing turbochargers are the result of Fantasy performances ten years of experience turbocharging performance FJ20s. Fantasy Performance has worked long and hard to develop the best real world performing turbochargers for the FJ20ET and is now offering them for sale in 5 stages. | ||
|
|
||
|
|
||
| High
flow factory FJ20ET turbocharger in standard housings.
Non-ball bearing (up to 440hp) $TBA |
||
|
|
||
| High
flow factory FJ20ET turbocharger up grade compressor housing.
Non-ball bearing (up to 500hp) $TBA |
||
|
|
||
| *Exclusive
to Fantasy performance
Billet Turbochargers Bolt on FJ20 turbocharger Stage 1. Upgraded compressor wheel. Inducer 48mm, exducer 60mm. Optional extra upgraded to Inconel Turbine. Inducer 59mm, exducer 48.7mm. Oil cooled twin full complement silicon nitride ball bearing Centre cartridge. Uses your factory Nissan FJ20ET compressor housing. Uses your factory Nissan FJ20ET exhaust housing. Recommended boost levels 5psi to 22psi No water lines needed Unbelievably ridicules boost response. Up to 280rwhp From $1150.00 AUD |
||
|
|
||
| *Exclusive
to Fantasy performance
Billet Turbochargers Bolt on FJ20 turbocharger Stage 2. Upgraded compressor wheel. Inducer 47.5mm, exducer 75mm. Upgraded to Inconel Turbine. Inducer 65mm, exducer 53.8mm. Oil cooled twin full complement silicon nitride ball bearing Centre cartridge. Uses your factory Nissan FJ20ET compressor housing. Uses your factory Nissan FJ20ET exhaust housing. Recommended boost levels 5psi to 25psi No water lines needed Incredible boost response. Up to 340rwhp This turbo out flows the GT28RS and uses the factory Nissan FJ20ET housings. From $1650.00 AUD |
||
|
|
||
| *Exclusive
to Fantasy performance
Billet Turbochargers Bolt on FJ20 turbocharger Stage 3. Upgraded compressor wheel. Fantasy Performance spec. Upgraded to Inconel Turbine. Fantasy performance spec. Oil cooled twin full complement silicon nitride ball bearing Centre cartridge. Uses your factory Nissan FJ20ET compressor housing Compressor housing optional extra upgrade. Fantasy Performance Spec. Uses your factory Nissan FJ20ET exhaust housing. Recommended boost levels 5psi to 28psi No water lines needed Better than standard boost response. Up to 400rwhp (With the upgraded compressor coverThis turbo beats up on the GT3071R and is Fantasys personal choice for a bolt on FJ20ET turbo.) From $1650.00 AUD |
||
|
|
||
|
|
||
|
Compressor
options. TBA
Compressor
cover A/R options.
Turbine
options. TBA
Exhaust
housing A/R options T25. .48, .64 and 86.
Actuator
psi options. 7psi, 9psi, 12psi, 14psi, 16psi, 18psi and 20psi.
Includes
actuator and flapper.
150hp
to 350hp
|
||
|
|
||
| Billet Turbochargers T03 internally wastegated | ||
|
Compressor
options. T03 35 trim, T03 40 trim, T03 45 trim, T03 50 trim, T03 55 trim,
T03 60 trim, T03 Big major 60 trim. More options available please inquire.
Compressor cover options. .50 A/R, .60A/R. Turbine options. 72 trim, stage 2, stage 3, stage 5. More options coming soon. Exhaust housing options. T03 .36 A/R, .48A/R, .63 A/R, .82 A/R. Actuator psi options. 7psi, 9psi, 12psi, 14psi, 16psi, 18psi, 20psi. Includes actuator and flapper. 150 to 380hp |
||
|
|
||
| Compressor options. T04
S trim, T04 Big major S trim, T04 V trim, T04 Big major S trim, T04 H trim,
T04 Big major H trim, T04 60-1 trim, T04E 40 trim, T04E 46 trim, T04E50
trim, T04E 54 trim, T04E 57 trim, T04E 60 trim, T04S 48 trim, T04S 50 trim,
T04S 52 trim, T04S 56 trim. T04S 60 trim.
Compressor cover standard options. T04B .50 A/R, .60 A/R. T04E 50 A/R, .60 A/R. Compressor cover optional extras. Billet T780 .70 A/R, 4 inlet, 2.5 outlet. Bullet port shrouded .70 A/R Billet T780 cover. 4 inlet, 2.5 outlet. Turbine options. T03 72 trim, stage 2, stage 3, stage 5. More options coming soon. Exhaust housing options. T03 .36 A/R, .48 A/R, .63 A/R, .82 A/R, 1.08 A/R. Actuator psi options. 7psi, 9psi, 12psi, 14psi, 16psi, 18psi and 20psi. Includes actuator and flapper. 300hp to 700hp |
||
|
|
||
| Compressor options. T04
S trim, T04 Big major S trim, T04 V trim, T04 Big major S trim, T04 H trim,
T04 Big major H trim, T04 60-1 trim, T04E 40 trim, T04E 46 trim, T04E50
trim, T04E 54 trim, T04E 57 trim, T04E 60 trim, T04S 48 trim, T04S 50 trim,
T04S 52 trim, T04S 56 trim. T04S 60 trim.
Compressor cover standard options. T04B .50 A/R, .60 A/R. T04E .50 A/R, .60 A/R. Compressor cover optional extras. .70 A/R Billet T780 cover, 4 inlet, 2.5 outlet. Bullet port shrouded .70 A/R Billet T780 cover. 4 inlet, 2.5 outlet. Turbine options. 72 trim, stage 2, stage 3, stage 5. More options coming soon. Exhaust housing options T03. .36 A/R, .48 A/R, .63 A/R, .82 A/R, 1.08 A/R 300hp to 650hp |
||
|
|
||
| Compressor options. T04
S trim, T04 Big major S trim, T04 V trim, T04 Big major S trim, T04 H trim,
T04 Big major H trim, T04 60-1 trim, T04E 40 trim, T04E 46 trim, T04E50
trim, T04E 54 trim, T04E 57 trim, T04E 60 trim, T04S 48 trim, T04S 50 trim,
T04S 52 trim, T04S 56 trim. T04S 60 trim.
Compressor cover Standard options. T04B .50 A/R, .60 A/R. T04E .50 A/R,.60 A/R. Compressor cover optional upgrades. .70 A/R Billet T780 cover, 4 inlet, 2.5 outlet. Bullet port shrouded .70 A/R Billet T780 cover. 4 inlet, 2.5 outlet. Turbine options. T04 N trim, T04 O trim, T04 P trim. Available soon Billet GTO turbine and Billet GTP turbine. Exhaust housing options. .58 A/R, .81 A/R, .96 A/R. divided .70 A/R, .84 A/R, 1.00 A/R, 1.15 A/R, 1.32 A/R. 300hp to 750hp. |
||
|
|
||

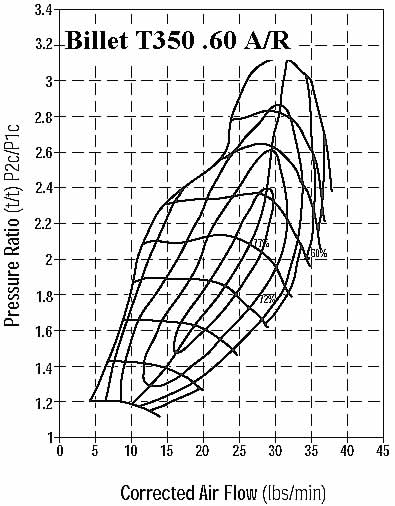

| Compressor standard options.
Billet T350 62 trim Inducer 47.2mm Exducer 60mm.
Standard compressor cover options. T28 .60 A/R, Nissan T28 .60 A/R, T04B .50 A/R, T04B .60 A/R. Compressor cover upgrades. Bullet port shrouded Billet T350 cover. 3 inlet, 2 outlet. Turbine standard options. Billet T350 Inducer 54mm Exducer 47mm. Turbine optional extras. N/A T25 and T28 exhaust housing options. .48 A/R, .64 A/R, .86 A/R. T03 foot print exhaust housing options. TBA Actuator psi options. 7psi, 9psi, 12psi, 14psi, 16psi, 18psi, 20psi. Includes actuator and flapper. 250hp to 350hp Compressor map |
||
 |
||
|
|
||

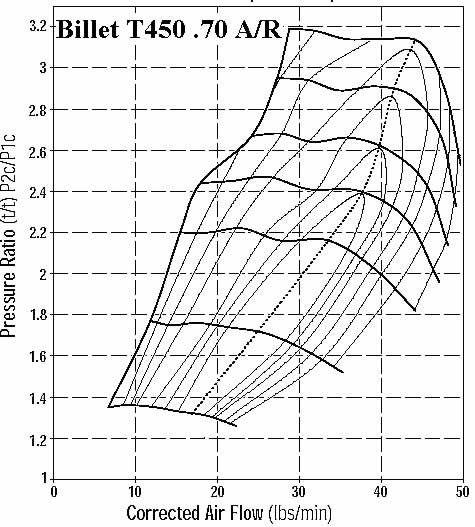

| Compressor options. Billet
T450 48 trim.
Compressor cover standard options. T04E .50 A/R, T04E .60 A/R, Billet T780. 70 A/R cover. 4 inlet 2.5 outlet. Compressor cover optional upgrades. Bullet port shrouded .70 A/R Billet T780 cover. 4 inlet, 2.5 outlet. Turbine options. Billet T450 turbine Exhaust housing options. T03 .48 A/R, .63 A/R, .82 A/R Actuator psi options. 7psi, 9psi, 12psi, 14psi, 16psi, 18psi and 20psi. Includes actuator and flapper. 350hp to 470hp Compressor map |
||
 |
||
|
|
||
| Compressor options. Billet
T450 48 trim.
Compressor cover standard options. T04E .50 A/R, T04E .60 A/R, Billet T780 .70 A/R cover. 4 inlet 2.5 outlet. Compressor cover optional upgrades. Bullet port shrouded .70 A/R Billet T780 cover. 4 inlet, 2.5 outlet. Turbine options. Billet T450 turbine. Exhaust housing options. T03 .48 A/R, .63 A/R, .82 A/R 350hp to 470hp Compressor map |
||
 |
||
|
|
||
| Compressor options. Billet
T500 52 trim Inducer 55mm Exducer 76mm, Billet T500 56 trim Inducer 57mm
Exducer 76mm..
Compressor cover standard options. T04E .50 A/R, T04E .60 A/R, Billet T780. 70 A/R cover. 4 inlet 2.5 outlet. Compressor cover optional upgrades. Bullet port shrouded .70 A/R Billet T780 cover. 4 inlet, 2.5 outlet. Turbine options. Billet T500 turbine, Billet T450 turbine. Exhaust housing options. T03 , .63 A/R, .82 A/R, 1.08 A/R. Actuator psi options. 7psi, 9psi, 12psi, 14psi, 16psi, 18psi and 20psi. Includes actuator and flapper. 400hp to 540hp Compressor map. 52 trim |
||
 |
||
|
|
||
| Compressor options. Billet
T500 52 trim Inducer 55mm Exducer 76mm, Billet T500 56 trim Inducer 57mm
Exducer 76mm..
Compressor cover standard options. T04E .50 A/R, T04E .60 A/R, Billet T780. 70 A/R cover. 4 inlet 2.5 outlet. Compressor cover optional upgrades. Bullet port shrouded .70 A/R Billet T780 cover. 4 inlet, 2.5 outlet. Turbine options. Billet T450 turbine, Billet T500 turbine. T03 Exhaust housing options. .63 A/R, .82 A/R, 1.08 A/R. T04 foot print exhaust housing options for Billet T500 turbine only. .58 A/R, .81 A/R, .96 A/R. divided .70 A/R, .84 A/R, 1.00 A/R, 1.15 A/R, 1.32 A/R. 400hp to 580hp Compressor map. 52 trim |
||
 |
||
|
|
||

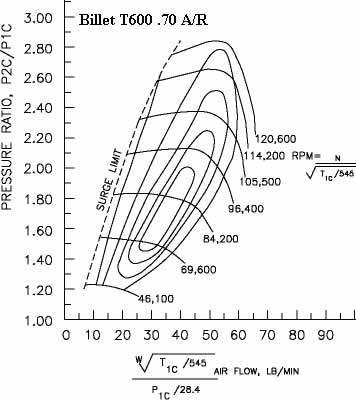

| Compressor options. Billet
T600 60 trim Inducer 59mm Exducer 76mm, Billet T500 56 trim Inducer 57mm
Exducer 76mm.
Compressor cover standard options. Billet T780 .70 A/R cover. 4 inlet 2.5 outlet. T04E .50 A/R, T04E .60 Compressor cover optional upgrades. Bullet port shrouded .70 A/R Billet T780 cover. 4 inlet, 2.5 outlet. Turbine options. Billet P trim turbine, Billet GTP turbine, Billet T500 turbine T03 Exhaust housing options. .63 A/R, .82 A/R, 1.08 AR, 1.32 A/R. 500hp to 650hp Compressor map |
||
 |
||
|
|
||
| Compressor options. Billet
T600 60 trim Inducer 59mm Exducer 76mm, Billet T500 56 trim Inducer 57mm
Exducer 76mm.
Compressor cover standard options. Billet T780 .70 A/R cover. 4 inlet 2.5 outlet. T04E .50 A/R, T04E .60 Compressor cover optional upgrades. Bullet port shrouded .70 A/R Billet T780 cover. 4 inlet, 2.5 outlet. Turbine options. Billet P trim turbine, Billet GTP turbine, Billet T500 turbine T03 Exhaust housing options. .63 A/R, .82 A/R, 1.08 AR, 1.32 A/R. T04 foot print exhaust housing options for Billet T500 turbine only. .58 A/R, .81 A/R, .96 A/R. divided .70 A/R, .84 A/R, 1.00 A/R, 1.15 A/R, 1.32 A/R. 500hp to 650hp Compressor map |
||
 |
||
|
|
||

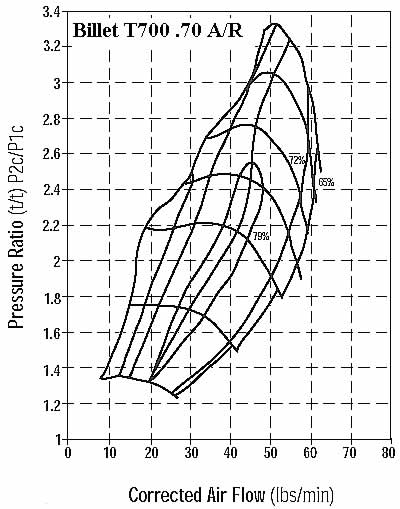

| Billet
Turbochargers Billet T700, Billet T700GTO, Billet T700GTP internally wastegated
(Special models)
(Base model same wheel combination as common brand GT35R /GT3540R) |
||
| Compressor options. Billet
T700 56 trim Inducer 61.2mm Exducer 82mm, Billet T700 54 trim Inducer 60.2mm
Exducer 82mm. Billet T700 52 trim inducer 59mm Exducer 82mm, Billet T700
50 trim Inducer 58mm Exducer 82mm.
Standard compressor cover options. .70 A/R Billet T780 cover. 4 inlet, 2.5 outlet. Compressor cover optional upgrades. Bullet port shrouded .70 Billet T780 cover. 4 inlet, 2.5 outlet. Standard Turbine options. Billet T700 Inducer 68mm Exducer 62mm. Turbine optional upgrades. Available soon Billet GTO turbine and Billet GTP turbine. T03 foot print exhaust housing options for Billet T700 turbine, Billet GTO turbine and Billet GTP turbine. .63 A/R, .82A/R, 1.06 A/R. Actuator psi options. 7psi, 9psi, 12psi, 14psi, 16psi, 18psi and 20psi. Includes actuator and flapper. 500hp to 800hp Compressor map |
||
 |
||
|
|
||
| Billet
Turbochargers Billet T700, Billet T700GTO, Billet T700GTP externally wastegated
(Special
models)
(Base model same wheel combination as common brand GT35R/GT3540R) |
||
| Compressor options. Billet
T700 56 trim Inducer 61.2mm Exducer 82mm, Billet T700 54 trim Inducer 60.2mm
Exducer 82mm. Billet T700 52 trim inducer 59mm Exducer 82mm, Billet T700
50 trim Inducer 58mm Exducer 82mm.
Standard compressor cover options. .70 A/R Billet T780 cover. 4 inlet, 2.5 outlet. Compressor cover optional upgrades. Bullet port shrouded .70 Billet T780 cover. 4 inlet, 2.5 outlet. Standard Turbine options. Billet T700 Inducer 68mm Exducer 62mm. Turbine optional upgrades. Available soon Billet GTO Turbine, Billet GTP Turbine. T03 foot print exhaust housing options for Billet T700 turbine, Billet GTO turbine, and Billet GTP turbine. .63 A/R, .82A/R, 1.06 A/R. T04 foot print exhaust housing options for Billet GTO turbine and Billet GTP turbine. .58 A/R, .81 A/R, .96 A/R. divided .70 A/R, .84 A/R, 1.00 A/R, 1.15 A/R, 1.32 A/R. 500hp to 800hp Compressor map |
||
 |
||
|
|
||

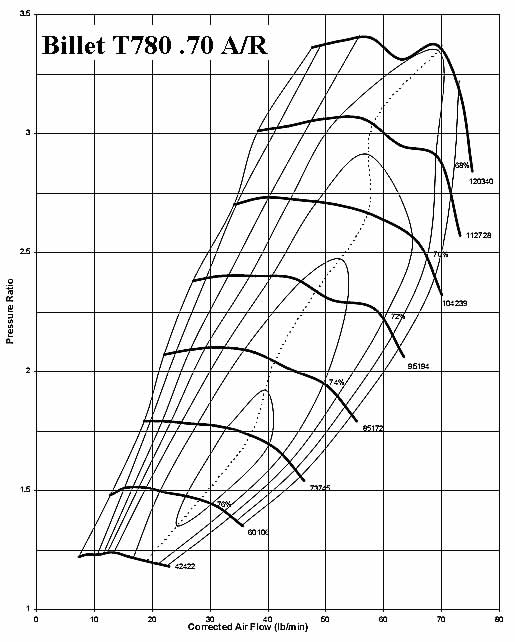

| Billet
Turbochargers Billet T780 & Billet T780GTP (Special models)
(Base model same wheel combination as popular brand T04Z) |
||
| Compressor options. Billet
T780 Inducer 66.7mm Exducer 84mm.
Compressor cover options. Bullet port shrouded .70 Billet T780 cover. 4 inlet, 2.5 outlet. Compressor cover optional upgrades. .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Bullet port shrouded .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Standard turbine options for Billet T780. Billet P trim. Standard turbine option for Billet T780GTP turbine. NEW and exclusive to Billet Turbochargers Billet GTP Turbine. Turbine optional upgrades. Billet Q trim turbine, Billet GTQ turbine, Billet GTS turbine. T03 foot print exhaust housing options for T04 P trim and Billet GTP turbines only. .82 A/R, 1.06 A/R. T04 foot print exhaust housing options available for all turbine options. Open .81 A/R, .96 A/R. Divided .70 A/R, .84 A/R, 1.00 A/R, 1.15 A/R, 1.32 A/R. 650hp to 850hp. Compressor map |
||
 |
||
|
|
||
| Billet
Turbochargers Billet T51 800 & T51 1000 (Special models)
(Same wheel combination as popular brand T51R KAI and T51R SPL) |
||
| Compressor options. Billet
T800 Inducer 70mm Exducer 94mm. Billet T1100 Inducer 76mm Exducer 102mm.
Compressor cover options. .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Compressor cover optional upgrades. Bullet port shrouded .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Standard turbine options. Billet T51 Inducer 82mm Exducer 71.4 Exhaust housing options. Open T04. .68 A/R, .81 A/R, .96 A/R. Divided T04. .70 A/R, .84 A/R, 1.00 A/R, 1.15 A/R, 1.32 A/R. 1.52 A/R. 800hp to 1000hp |
||
|
|
||
| Billet Turbochargers Billet T800GTQ, Billet T800GTS. | ||
| Compressor options. Billet
T800 Inducer 70mm Exducer 94mm.
Compressor cover options. .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Compressor cover optional upgrades. Bullet port shrouded .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Standard turbine options. Billet GTQ turbine Inducer 79mm Exducer 68.5mm. Billet GTS turbine Inducer 81.3mm Exducer 75.2mm. Exhaust housing options. Open T04. .68 A/R, .81 A/R, .96 A/R. Divided T04. .70 A/R, .84 A/R, 1.00 A/R, 1.15 A/R, 1.32 A/R. 1.52 A/R. 750hp to 900hp |
||
|
|
||
| Billet Turbochargers Billet T1000GTQ, Billet T1000GTS | ||
| Compressor options. Billet
T1000 Inducer 74.3mm Exducer 102mm.
Compressor cover options. .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Compressor cover optional upgrades. Bullet port shrouded .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Standard turbine options. Billet GTS turbine Inducer 81.3mm Exducer 75.2mm. Billet GTQ turbine Inducer 79mm Exducer 68.5mm. Exhaust housing options. Open T04. .68 A/R, .81 A/R, .96 A/R. Divided T04. .70 A/R, .84 A/R, 1.00 A/R, 1.15 A/R, 1.32 A/R. 1.52 A/R. 900hp to 1100hp Compressor map |
||
 |
||
|
|
||
| Billet Turbochargers Billet T1100GTS | ||
| Compressor options. Billet
T1100 Inducer 76mm Exducer 102mm.
Compressor cover options. .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Compressor cover optional upgrades. Bullet port shrouded .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Standard turbine options. Billet GTS turbine Inducer 81.3mm Exducer 75.2mm. Billet GTQ turbine Inducer 79mm Exducer 68.5mm. Exhaust housing options. Open T04. .68 A/R, .81 A/R, .96 A/R. Divided T04. .70 A/R, .84 A/R, 1.00 A/R, 1.15 A/R, 1.32 A/R. 1.52 A/R. 1000hp to 1100+hp Compressor map |
||
 |
||
|
|
||
| Billet Turbochargers Billet S1100GTS, Billet S1100GTQ. | ||
| Compressor options. Billet
S1100 Inducer 75mm Exducer 100mm.
Compressor cover options. .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Compressor cover optional upgrades. Bullet port shrouded .75 A/R Billet T1100 cover. 4 inlet, 3 outlet. Standard turbine options. Billet GTS turbine inducer 81.3mm exducer 75.2mm. Billet GTQ turbine Inducer 79mm Exducer 68.5mm. Exhaust housing options. Open T04. .68 A/R, .81 A/R, .96 A/R. Divided T04. .70 A/R, .84 A/R, 1.00 A/R, 1.15 A/R, 1.32 A/R. 1.52 A/R. 900hp to1100+hp Compressor map |
||
 |
||
|
|
||
|
|
||
|
|
||
